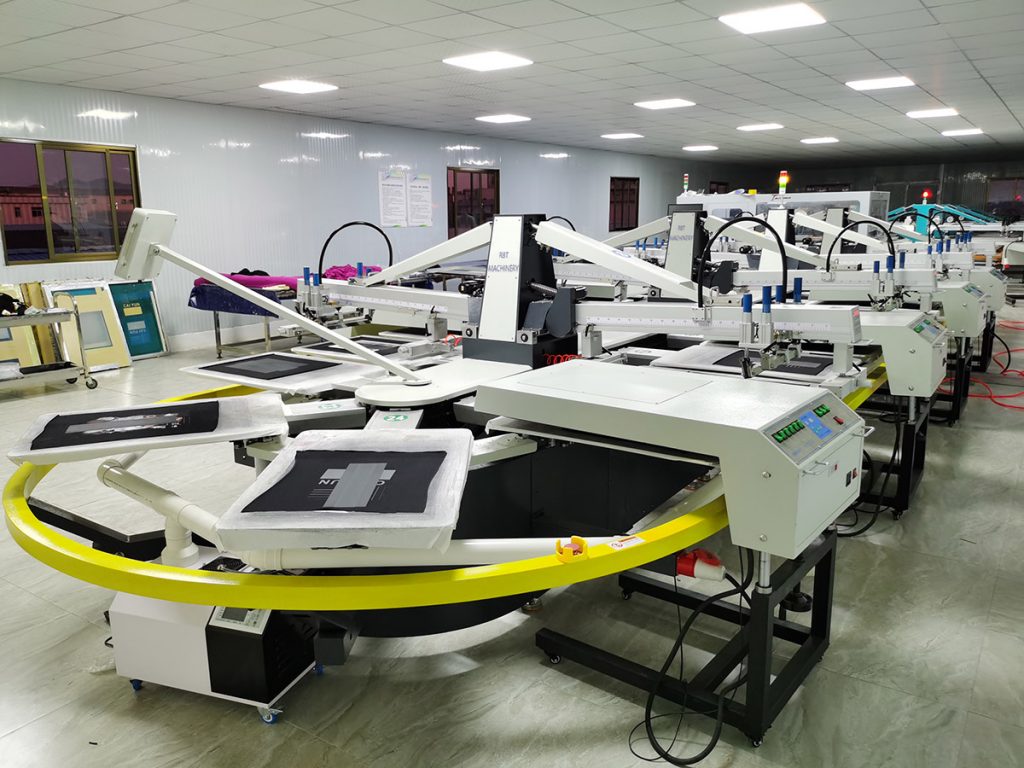

Multi Purpose Digital Hybrid Oval Screen Printing Machine
-Makes the Printing more Professional and easier!
Key Features:
1, Digital Printer Hybrid Automatic Oval Screen Printing Machine
2, Powder by I3200 printhead Epson PrecisionCore Tech. , MEMS, VSDT Technology and Startfire Industrial industrial Printhead
3, CMYK or CMYK+W or CMYK + W + LC,LY,LO,LR etc. All Printing in One Time with One Machine
4, Direct to Garment Printer, DTG Printer
5, Higher Productivity, Time and Space Effectiveness, Low-Cost Operation, Quick Result Oriented
6, Ideal for Small Batch Production, Pre-production and Samples Development and bulk production
Applications:
It is a Perfect Solution for All kinds of Garment Printing and Garment Piece Printing, DTG Printing Solution, the Combination Printing Solution of Oval Screen Printing and Industrial-level Printhead Digital Printing, Keeps Your Printing away from the Troubles of Misregistration, Nozzle Clogging and the Lower Efficiency of Flatbed Printing Solution.
Machine Specifications:
Main Technical Parameters of Digital Printing Machine
|
Model Printhead Industrial-Level |
RBT-DSSG Starfire SG1024 Printing Heads |
RBT-DSEP Epson 4720 4 / i3200 8 pcs of Printhead |
|
Color |
CMYK 4 Color or CMYK+W 5 Color |
CMYK 4 Color or CMYK+W 5 Color |
|
The Printing Resolution |
720x800dpi; 720x1000dpi; 720x1200dpi |
360x2400dpi; 720x1800dpi 720x2400dpi |
|
Productivity: pcs/h As per A4 Size |
150-180pcs /h for 4 heads 250-280pcs/h for 8 heads |
150-180pcs /h for 4 heads 250-280pcs/h for 8 heads |
|
Height of Printing |
3~30mm |
3~30mm |
|
Max. Printing Sizes |
400*600mm |
600*750mm |
|
Type of Ink |
Textile Pigment Inks |
Water-based Textile Pigment Inks |
|
Ink Feeding System |
Automatic Negative Pressure Ink System |
Automatic Negative Pressure Ink System |
|
Max. Thickness of Fabric Printing |
25mm |
25mm |
|
RIP Software |
PhotoPrint/ Neostampa(Option) |
Wasatch SoftRIP/ Neostampa |
|
Printhead Maintenance System |
Auto Self-Cleaning, Self-moisturizing and Ink-Scrapping System |
Auto Self-Cleaning, Self-moisturizing and Ink-Scrapping System |
|
Power Supply |
220VAG Single Phase 50/60Hz |
220VAG Single Phase 50/60Hz |
|
Operation Environment |
Temperature: 25~28℃ ; Humidity:55~65% |
Temperature: 20~35℃ ; Humidity:35~65% |
|
Sizes & Weight of Equipment |
2550x1600x1650mm/1500KG |
2550x1600x1650mm/1500KG |
|
Suitable For Types of Fabric |
Cotton, Linen, Silk, Canvas, Polyester, Nylon Wool, Cashmere and other Textile Fabrics |
|
Main Technical Parameters of Oval Screen Printing Machine
|
Items/Model |
RBT-S06 |
RBT-S08 |
RBT -S10 |
RBT– S12 |
RBT -S14 |
RBT -S16 |
RBT -S18 |
RBT– S20 |
||
|
Number of PrintHeads |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
||
|
Plate Quantity (PCS/Standard) |
22 |
28 |
34 |
40 |
46 |
52 |
58 |
64 |
||
|
Screen Frame Sizes(cm) |
I, 66*94; II, 76*114; III, 83*129 cm; Sizes can be Customized! |
|||||||||
|
Pallet Sizes (cm) |
I, 58*85; II, 68*105; III, 75*120cm; Sizes can be Customized! |
|||||||||
|
Printing Area(cm) |
I, 55*70; II, 65*90; III, 70*105cm; Sizes can be Customized! |
|||||||||
|
Air Pressure Specification |
0.6Mpa/0.8Mpa; Dry and Clean Air, |
|||||||||
|
PrintHead Driver |
Single printing head servo motor 400W |
|||||||||
|
Machine Sizes (cm) (L*W*H) |
I-L |
888 |
1094 |
1300 |
1506 |
1712 |
1918 |
2124 |
2330 |
|
|
I-W*H |
310*168 |
|||||||||
|
II-L |
971 |
1200 |
1429 |
1658 |
1887 |
2116 |
2345 |
2574 |
||
|
II-W*H |
360*180 |
|||||||||
|
III-L |
1364 |
1621 |
1878 |
2135 |
2392 |
2649 |
2906 |
3163 |
||
|
III-W*H |
400*180 |
|||||||||
|
Power Supply |
380V,50~60HZ,Three Phase Four Wires |
|||||||||
|
Machine |
I |
3.4 |
4.2 |
5.0 |
5.8 |
6.6 |
7.4 |
8.2 |
9.0 |
|
|
Power(kw) |
II&III |
4.4 |
5.2 |
6.0 |
6.8 |
7.6 |
9.4 |
10.2 |
11.0 |
|
|
Max.Printing Speed(pcs/h) |
600~800pcs/h |
|||||||||
