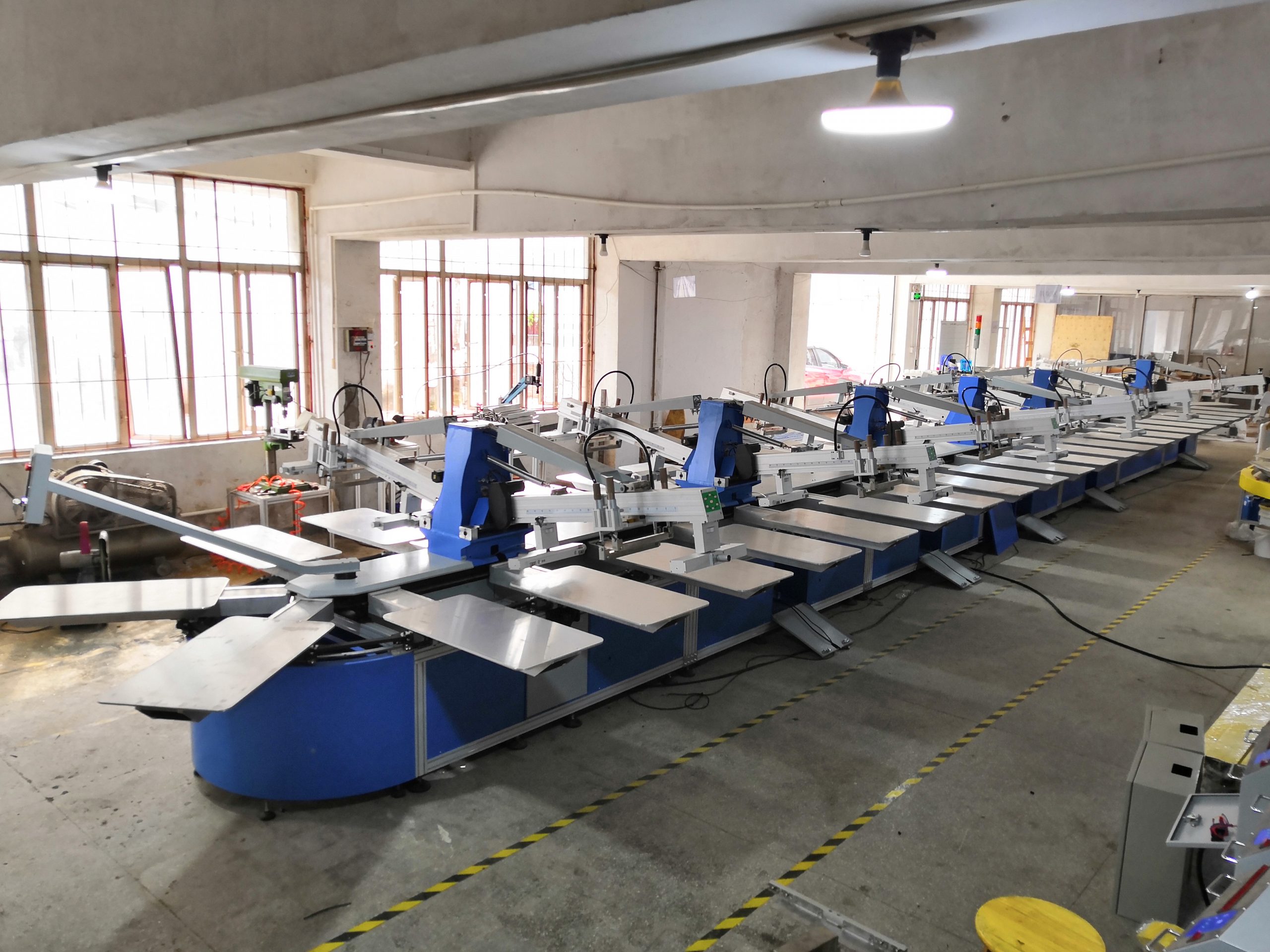

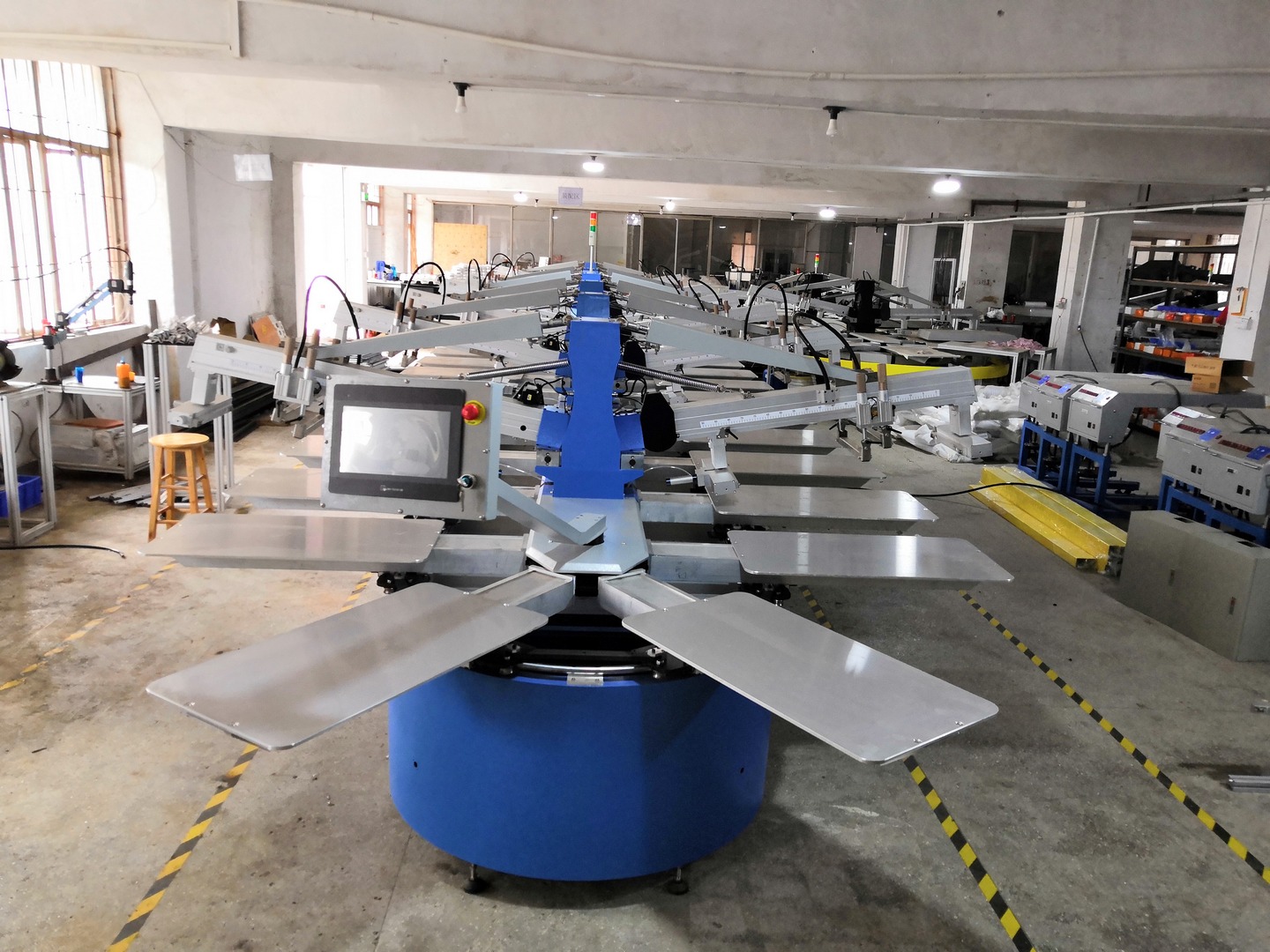

Full Automatic Oval Screen Printing Machine
Key Features:
1, Steel Frame Base, More Durable and Robust.
2, Full Automatic Printing with Flash Dryer System
3, Achieve Independent Printing for Each Different Color
4, Printing Height can be Adjusted Automatically
5, Equipped with Import Servo Motor Driving, Sensing and Transmission System
6, Scientific and Rational (Positioning)Mechanism Structure Design, Registration More Precision.
Error is less than 0.01mm; And Lower your ownership cost.
7, Different Printing Sizes for Your Option. Meet Your Individual Printing Requirement.
8, It Takes only 2-3 People to Operate. Higher efficiency and Minimize your Time and Labor Cost
Applications:
Be competent for various printing process such as Water Slurry Printing, Oil-based Ink Printing, Plasticol Ink Printing, Mucilage or Paste Printing and Flocking Printing etc. As a standard function configuration, Flocking turns into the best match for the All kinds of Garment Printing and Garment Piece Printing.
The machine is Competent for the Printing of Garment, T-Shirt, Bag, Sock, Hat, Fabric, Paper, Leather, PVC Board, Sticker and So On.
Machine Specifications:
|
Model |
RBT-S04 |
RBT-S06 |
RBT-S08 |
RBT -S10 |
RBT– S12 |
RBT -S14 |
RBT -S16 |
RBT -S18 |
RBT– S20 |
RBT– S22 |
RBT -S24 |
||||||
|
Number of PrintHeads |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
22 |
24 |
||||||
|
Plate Quantity (PCS/Standard) |
16 |
22 |
28 |
34 |
40 |
46 |
52 |
58 |
64 |
70 |
76 |
||||||
|
Screen Frame Sizes(cm) |
I, 66*94; II, 76*114; III, 83*129 cm; Sizes can be Customized! |
||||||||||||||||
|
Pallet Sizes (cm) |
I, 58*85; II, 68*105; III, 75*120cm; Sizes can be Customized! |
||||||||||||||||
|
Printing Area(cm) |
I, 55*70; II, 65*90; III, 70*105cm; Sizes can be Customized! |
||||||||||||||||
|
Air Consumption (m3/min) |
0.1 |
0.15 |
0.20 |
0.25 |
0.30 |
0.35 |
0.40 |
0.45 |
0.50 |
0.55 |
0.60 |
||||||
|
Air Pressure Specification |
0.6Mpa/0.8Mpa; Dry and Clean Air |
||||||||||||||||
|
PrintHead Driver |
Single printing head servo motor 400W |
||||||||||||||||
|
Power Supply |
380V,50~60HZ,Three Phase Four Wires |
||||||||||||||||
|
Max. Printing Speed(pcs/h) |
600~800pcs/h |
||||||||||||||||
|
Machine Power(kw) |
I |
2.6 |
3.4 |
4.2 |
5.0 |
5.8 |
6.6 |
7.4 |
8.2 |
9.0 |
/ |
/ |
|||||
|
II&III |
/ |
4.4 |
5.2 |
6.0 |
6.8 |
7.6 |
9.4 |
10.2 |
11.0 |
11.8 |
12.6 |
||||||
|
Machine Sizes (cm) (L*W*H) |
I –L |
682 |
888 |
1094 |
1300 |
1506 |
1712 |
1918 |
2124 |
2330 |
/ |
/ |
|||||
|
I-W*H |
310*168 |
||||||||||||||||
|
II-L |
/ |
971 |
1200 |
1429 |
1658 |
1887 |
2116 |
2345 |
2574 |
2803 |
3032 |
||||||
|
II-W*H |
360*180 |
||||||||||||||||
|
III-L |
1364 |
1621 |
1878 |
2135 |
2392 |
2649 |
2906 |
3163 |
3420 |
3677 |
|||||||
|
III-W*H |
400*180 |
||||||||||||||||
